HOW TO SET YOUR LOCK

We are very glad that you have chosen an Eminent suitcase. Follow the instructions below to set up a lock combination of your choice or to change your lock combination. The design of your lock might defer from the illustrations below, this has however no influence on the process of setting the lock code.

STEP 1: OPEN THE LOCK

Upon delivery our locks are set to the default combination 0-0-0. To set a new locking code the lock must be unlocked first.

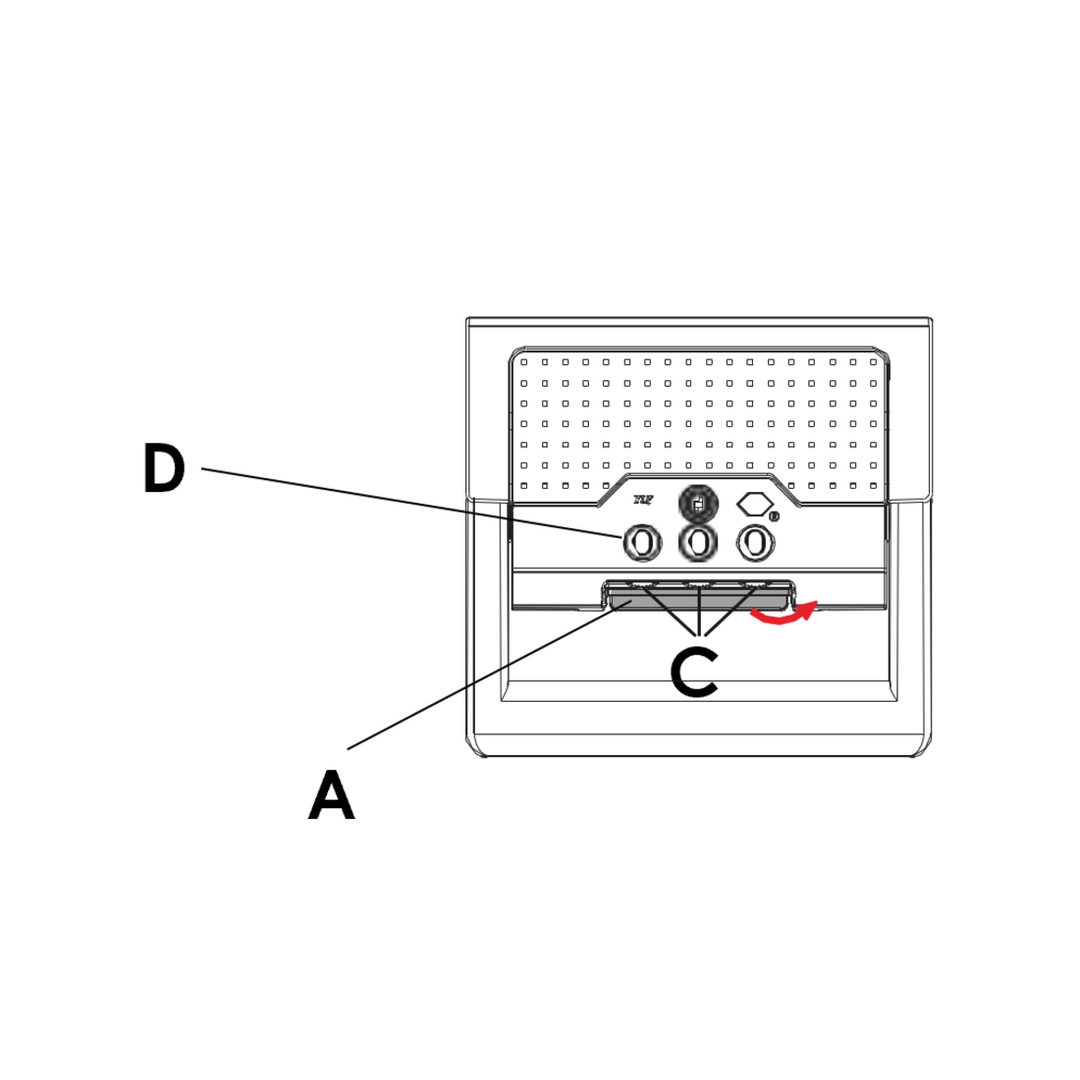

Use the dials marked with C and input the combination 0-0-0. Afterwards, open the lock using the button marked with A.

Note: If you are changing an existing lock combination please enter the lock combination currently set and not the default combination 0-0-0.

Step 2: Press the reset button

To initiate the change of the lock

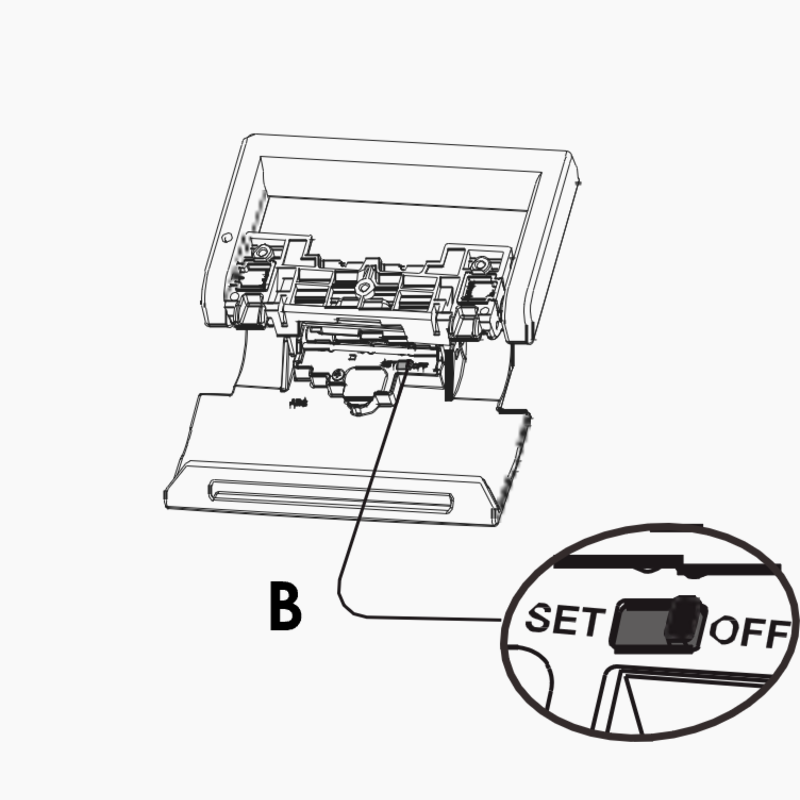

combination the reset button must first be set to 'SET'. The button is located at the backside of the lock (when it is opened) and might not be directly visible. In the illustration it is marked with B.

Please note that the button can only be accessed when the lock is opened.

Step 3: Set your new code

Turn the dials - marked with C - to select your new combination. Your new combination should be visible in the small in the small holes marked with D.

While setting the new combination the lock should remain opened.

Step 4: Complete Setup

After you have setup your lock
combination the reset button - marked with B - needs to be set back to 'OFF'.

Your new combination is now set and you can close the lock and use your new combination to unlock it.

CONGRATS

You have finished the setup successfully. You can return to this instruction at any time to change your the combination to a new one.

IMPORTANT WARNING

Please do not insert keys, screwdrivers or other objects into the keyhole of the lock. This will result in damages to the lock cylinder making the lock unusable.
