We are very glad that you have chosen an Eminent suitcase. Follow the instructions below to set up a lock combination of your choice or to change your lock combination. The exact design of your lock might defer from the illustrations below, this has however no influence on the process of setting the lock code.
Upon delivery our locks are set to the default combination 0-0-0. To set a new locking code the lock must be unlocked first.
To do so please make sure the combination 0-0-0 is entered and press the button marked with E towards the dials.
Note: If you are changing an existing lock combination please enter the lock combination currently set and not the default combination 0-0-0.
To initiate the change of the lock

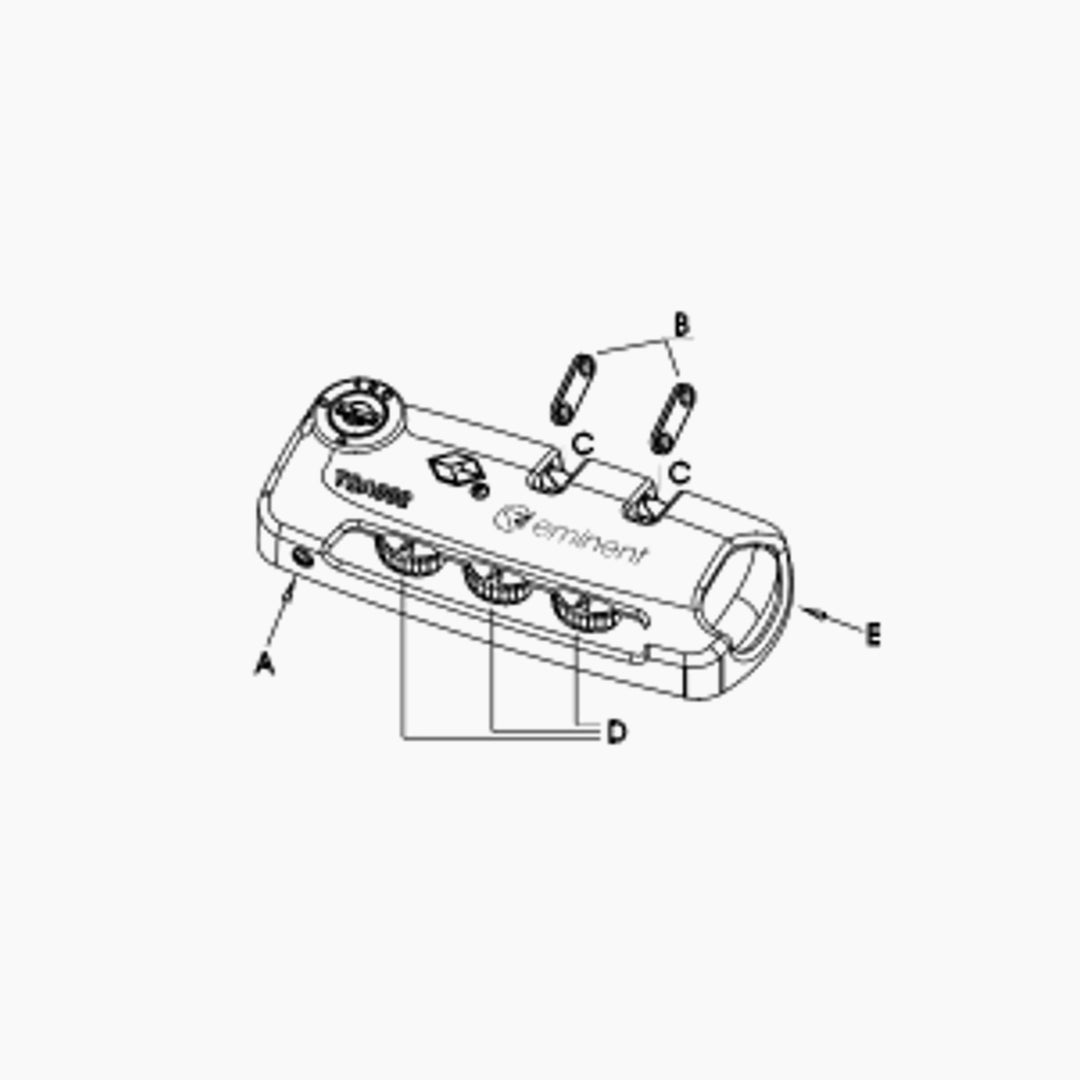

combination the reset button must first be pressed. The button is located at the side of the lock and might not be directly visible. In the illustration above it is marked with A.
Use a pen to press down the reset button. To ensure that the lock combination is not set to an unintended combination it is necessary that the reset button is constantly pressed while setting the new combination in step 3.
Use the dials marked with D and set them to the combination of your choice. Once you have set your combination please make sure that the dials are completely aligned and that the dial is not set between two
After you have setup your lock
combination you can remove the pen from the reset button. Your combination has now been set.
To lock the suitcase simply push the zipper pullers into the lock. To unlock the suitcase press button E.
You have finished the setup successfully. You can return to this instruction at any time to change your the combination to a new one.
Please do not insert keys, screwdrivers or other objects into the keyhole of the lock. This will result in damages to the lock cylinder making the lock unusable.
